EQUIPMENT DESCRIPTION

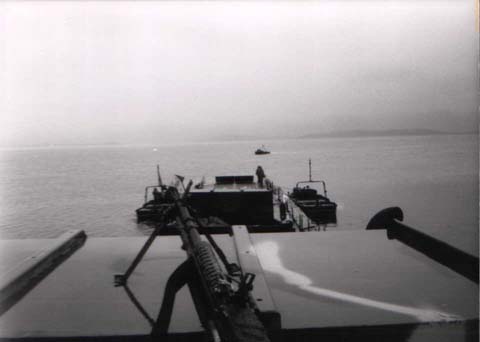

M60 Machine Gun

EQUIPMENT CHARACTERISTICS, CAPABILITIES, AND FEATURES

M60 is an air-cooled and have fixed headspace allowing quick barrel changes for cooling and maintenance when required. In order to extend the life of the barrels, retain accuracy, and allow for continuous firing over long periods of time, two barrels assemblies are issued with each gun. The machine gun is gas-operated and fires from open bolt position.

EQUIPMENT DATA:

Caliber: 7.62 mm
Weight: 23 lbs (10.43 kg)
Length: 43.5 in overall (1.1 m overall)
Maximum Effective Range: 1100 meters
Maximum Range: 3725 meters
Tracer Burn Out: 900 meters or more
Rate of fire (cyclic): 550 rounds per min. (approx.)
Muzzle velocity: 2800 FPS
Capaacity of bandoleer: 100 rounds
Rifling:
Number of lands: 4
Right hand twist: One turn in 12 in. (30.54 cm)
Trigger pull:
Maximum: 11.5 lbs (5.2kg)
Minimum: 6.0 lbs (2.7 kg)

The web page author was assigned as our platoons Machine Gunner in 1994.
I was issued FM 23-67 and qualified on the M60 Machine Gun in April at our spring Field Training Exercise (FTX).
