EQUIPMENT DESCRIPTION

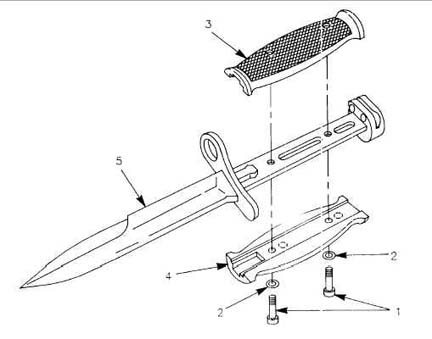

M7 Bayonet and M8A1 Scabbard

EQUIPMENT CHARACTERISTICS, CAPABILITIES, AND FEATURES

The bayonet serves as a secondary weapon should the rifle develop a stoppage.
In hand-to-hand encounters the bayonet may be used as a hand held weapon.
The M7 Bayonet is used as a bayonet on the M16 Rifle series, the M4 Carbine and as a hand weapon.

EQUIPMENT DATA:

Entered Army Service: 1965
Blade length: 6.5 in
Total length: 11.75 in

Used on the M16 and M4 Rifle.

Here are some Army manuals concerning the use of bayonets.
