1-10. EQUIPMENT DIFFERENCES

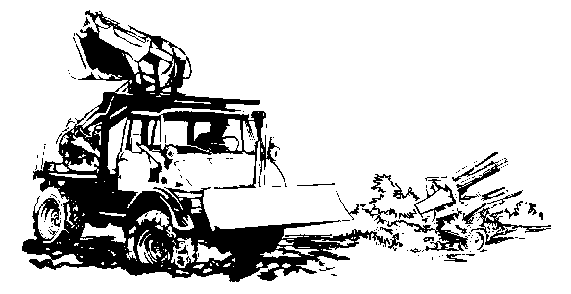

SEE Tractor
Front loader
Backhoe
Chain saw
Hammer drill
Pavement breaker

HMMH Tractor
Suspension lockout system
Forklift
Crane
Impact wrench

1-11. EQUIPMENT DATA

DIMENSIONS
SEE
Overall Length: 250 in. (6.35 m)
Overall Height: 102 in. (2.60 m)
Overall Width: 96 in. (2.44 m)
Track: 64 in. (1.63 m)
Wheel Base: 93.7 in. (2.39 m)
Turning Circle Diameter: 35.8 ft (11.7 m)
HMMH
Overall Length: 211 in. (5.36 m)
Overall Height: 98.5 in. (2.50 m)
Overall Width: 94 in. (2.38 m)
Track: 64 in. (1.63 m)
Wheel Base: 93.7 in. (2.39 m)
Turning Circle Diameter: 35.8 ft (11.7 m)
VEHICLE SPECIFICATIONS
Angle of Approach (HMMH): 30 degrees
Angle of Departure (HMMH): 36 degrees
Angle of Approach (SEE): 40 degrees
Angle of Departure (SEE): 32 degrees
Maximum Highway Speed (SEE/HMMH): 50 mph (80 km/h)
Cross Country
Traverse Up/Down Inclines: 60 percent
Traverse Side Slopes: 30 percent
Fording Depth: 30 in. (0.76 m)
Ground Clearance: 17 in. (0.43 m)
ENGINE
Model: OM 352
Type: Four-stroke diesel, direct injection
Cylinders: Six, vertical in-line
Bore: 3.82 in. (97 mm)
Stroke: 5.04 in. (128 mm)
Displacement: 346 cu in. (5675 cu cm)
Compression Ratio: 17:1
Power Output: 110 hp (81 kW/1 min)
Nominal Engine Speed: 2800 rpm
Maximum Torque: 234 lb.-ft (318 N•m)
Low Idle Speed: 700-750 rpm
Injection Order: 1-5-3-6-2-4
Coolant Temperature: 203°F (95°C)
Minimum Oil Pressure at Idle: 9 psi (62 kPa)
Normal Oil Pressure: 29-73 psi (199-503 kPa)
WHEELS AND TIRES
Tire Size: 12.5 R20 X LPR 12
Rim Size: 11.00 - 20
FRONT END LOADER (SEE)
Bucket Width: 81.5 in. (2.07 m)
Lift Height: 98 in. (2.5 m)
Breakout Force: 6,000 lb. (2722 kg)
Lift Capacity: 3,300 lb. (1497 kg)
Bucket Capacity: 0.75 cu yd (573 1)
BACKHOE (SEE)
Bucket Capacity: 7 cu ft (1981 1)
Digging Depth: 14 ft (4.26 m)
Digging Radius: 17 ft 8 in. (5.39 m)
Loading Height: 11 ft (3.35 m)
Swing Arc: 180 degrees
Digging Force: 10,000 lb. (4536 kg)
FORKLIFT (HMMH)
Lift Capacity: 4,000 lb. (1818 kg) @ 24 in. (61 cm) load center
Lift Height: 106 in. (269 cm)
Mast Rotation: 15 degrees CW, 15 degrees CCW
Mast Tilt: 8 degrees forward, 10 degrees back
CRANE (HMMH)
Lift Capacity: 6,000 lb. (2727 kg) @ 8 ft (2.4 m) reach
Lift Height: 26 ft 7 in. (8.1 m)
Maximum Reach: 19 ft 2 in. (5.8 m)
Rotation: 350 degrees
HYDRAULIC TOOLS
Chain Saw (SEE)
Power Output: 8 hp (5.9 kW)
Cut: 15 in. (38.1 mm)
Weight: 7 lb. (3.2 kg)
Hammer Drill (SEE)
Bore: 2 in. diameter (50.8 mm)
Depth: 30 in. (76.2 cm)
Weight: 48 lb. (20.1 kg)
Pavement Breaker (SEE)
Output: 1,400 blows/min @ 82 lb.-ft (111 N•m.) approx
Weight: 72 lb. (31.7 kg)
Impact Wrench (HMMH)
Drive: 3/4 in. (19 mm)
Torque: 350 lb.-ft (474.6 N•m)
Weight: 14 lb. (6.4 kg)

TOWING
Maximum Gross Permissible Towing Capacity: 17,000 lb (7711 kg)
CAPACITIES
Fuel Tank: 30 gal (114 l)
Engine with Oil Filter
Maximum: 11.6 qt (11 l)
Minimum: 8.4 qt (8 l)
Oil Filter: 1.05 qt (1.0 l)
Engine Coolant, Total: 24 qt (23 l)
Antifreeze Protection to -13°F (-25°C): 9.76 q9t. 2( 5 l)
Antifreeze Protection to -40°F (-40°C): 12 (q1t1 .7 l)
Anticorrosion Protection: 8.5 fludi oz (0.25 l)
Transmission: 7 qt (6.6 l)
Axles
Differential Housing: 2.4 qt (2.25 l)
Hub Reduction Drive: 8.5 fludi oz (0.25 l)
Differential Lock: 0.034 fildu oz (0.001 l)
Clutch Reservoir: 0.2 qt (0.18 l)
Brake Reservoir: 0.8 qt (0.75 l)
Steering Reservoir: 3 qt (2.8 l)
Compressed Air Antifreeze: 0.2 qt (0.19 l)
Front Hydraulic Reservoir: 44 qt (41.6 l)
Rear Hydraulic Reservoir: 84 qt (79.4 l)
Front Suspension Lockout System: 1. qt (0.94 l)
Windshield Washer: 2.5 qt (2.4 l)
Tire Pressure (all tires, all missions): 4.0 psi (2.7 bar)

The above information is from: TM 5-2420-224-10
