General characteristics

Crew: 2
Length: 16.72 m (54 ft 10 in)
Wingspan: 13.91 m at 25° wing sweep, 8.60 m at 67° wing sweep (45.6 ft / 28.2 ft)
Height: 5.95 m (19.5 ft)
Wing area: 26.6 m² (286 ft²)
Empty weight: 13,890 kg (31,620 lb)
Max takeoff weight: 28,000 kg (61,700 lb)
Powerplant: 2× Turbo-Union RB199-34R Mk 103 afterburning turbofans
Dry thrust: 43.8 kN (9,850 lbf) each
Thrust with afterburner: 76.8 kN (17,270 lbf) each

Performance

Maximum speed: 800kts IAS Mach 2.34 (2,417.6 km/h, 1,511 mph)
Range: 1,390 km (870 mi) typical combat
Ferry range: 3,890 km (2,417 mi) with four external drop tanks
Service ceiling: 15,240 m (50,000 ft)
Rate of climb: 76.7 m/s (15,100 ft/min)
Thrust/weight: 0.55

Armament

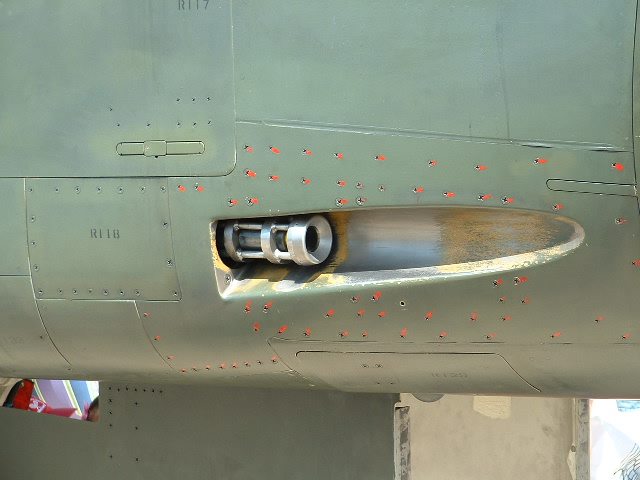

Guns: 2× 27 mm (1.063 in) Mauser BK-27 revolver cannon internally mounted under both side of fuselage, each with 180 rounds (Panavia Tornado ADV has 1× BK-27)

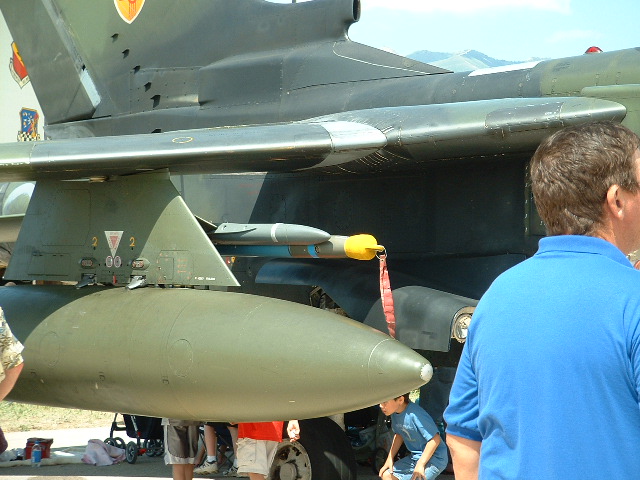

Hardpoints: 4× light duty + 3× heavy duty under-fuselage and 4× swivelling under-wing pylon stations holding up to 9000 kg (19,800 lb) of payload, the two inner wing pylons have shoulder launch rails for 2× Short-Range AAM (SRAAM) each

Missiles:

Air-to-air missiles:

• AIM-9 Sidewinder or
• IRIS-T or
• AIM-132 ASRAAM for self-defence

Air-to-surface missiles:

• 6× AGM-65 Maverick; or
• 12× Brimstone missile; or
• 4× Storm Shadow; or
• Taurus KEPD 350 cruise missileh

Anti-ship missiles:

• 2× AS.34 Kormoran; or
• 2× BAe Sea Eagle; or

Anti-radiation missiles:

4× AGM-88 HARM; or
9× ALARM missile

Bombs:

• Hunting Engineering BL755 cluster bombs; or
• HOPE/HOSBO GPS/electro-optically guided glide bombs; or
• Joint Direct Attack Munition JDAM); or
• Paveway series of Laser-guided bomb (LGB); or
• Up to 2× JP233 or MW-1 munitions dispensers (for runway cratering operations)
• Up to 4× B61 or WE.177 tactical nuclear weapons

Others:

Up to 4× drop tanks for ferry flight/extended range/loitering time

Avionics

• RAPTOR aerial reconnaissance pod
• RAFAEL LITENING targeting pod; or
• TIALD laser designator pod
