F-16 Falcon




General characteristics

Crew: 1
Length: 49 ft 5 in (15.06 m)
Wingspan: 32 ft 8 in (9.96 m)
Height: 16 ft (4.88 m)
Wing area: 300 ft² (27.87 m²)
Airfoil: NACA 64A204 root and tip
Empty weight: 18,900 lb (8,570 kg)
Loaded weight: 26,500 lb (12,000 kg)
Max takeoff weight: 42,300 lb (19,200 kg)
Powerplant:F110-GE-100 afterburning turbofan
Dry thrust: 17,155 lbf (76.3 kN)
Thrust with afterburner: 28,600 lbf (127 kN)
Internal fuel:

Performance

Maximum speed:
At sea level:
Mach 1.2 (915 mph, 1,470 km/h)
At altitude: Mach 2+[106] (1,500 mph, 2,410 km/h) clean configuration
Combat radius: 340 mi (295 nm, 550 km) on a hi-lo-hi mission with six 1,000 lb (450 kg) bombs
Ferry range: 2,280 NM (2,620 mi, 4,220 km) with drop tanks
Service ceiling: 60,000+ ft (18,000+ m)
Rate of climb: 50,000 ft/min (254 m/s)
Wing loading: 88.3 lb/ft² (431 kg/m²)
Thrust/weight: 1.095

Armament

Guns: 1× 20 mm (0.787 in) M61 Vulcan 6-barreled gatling cannon, 511 rounds Hardpoints: 2× wing-tip Air-to-air missile launch rails, 6× under-wing & 3× under-fuselage pylon stations holding up to 17,000 lb (7,700 kg) of payload
Rockets:

  • 4× LAU-61/LAU-68 rocket pods (each with 19× /7× Hydra 70 mm rockets, respectively) or
  • 4× LAU-5003 rocket pods (each with 19× CRV7 70 mm rockets) or
  • 4× LAU-10 rocket pods (each with 4× Zuni 127 mm rockets)

Missiles:

Air-to-air missiles:

Air-to-ground missiles:

Anti-ship missiles:

Bombs:

Others:

Avionics:

AN/APG-68 radar

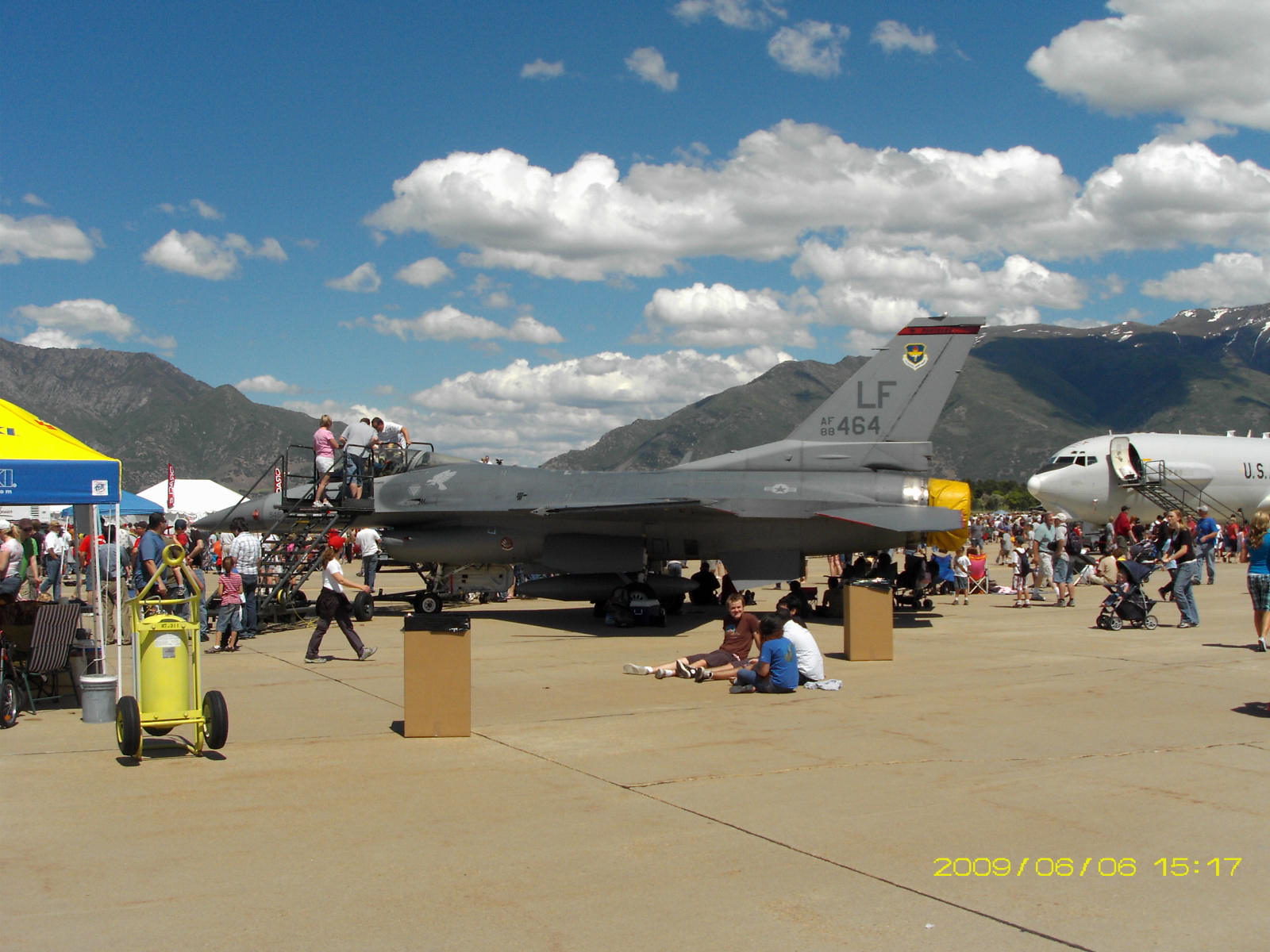

F-16 Falcon

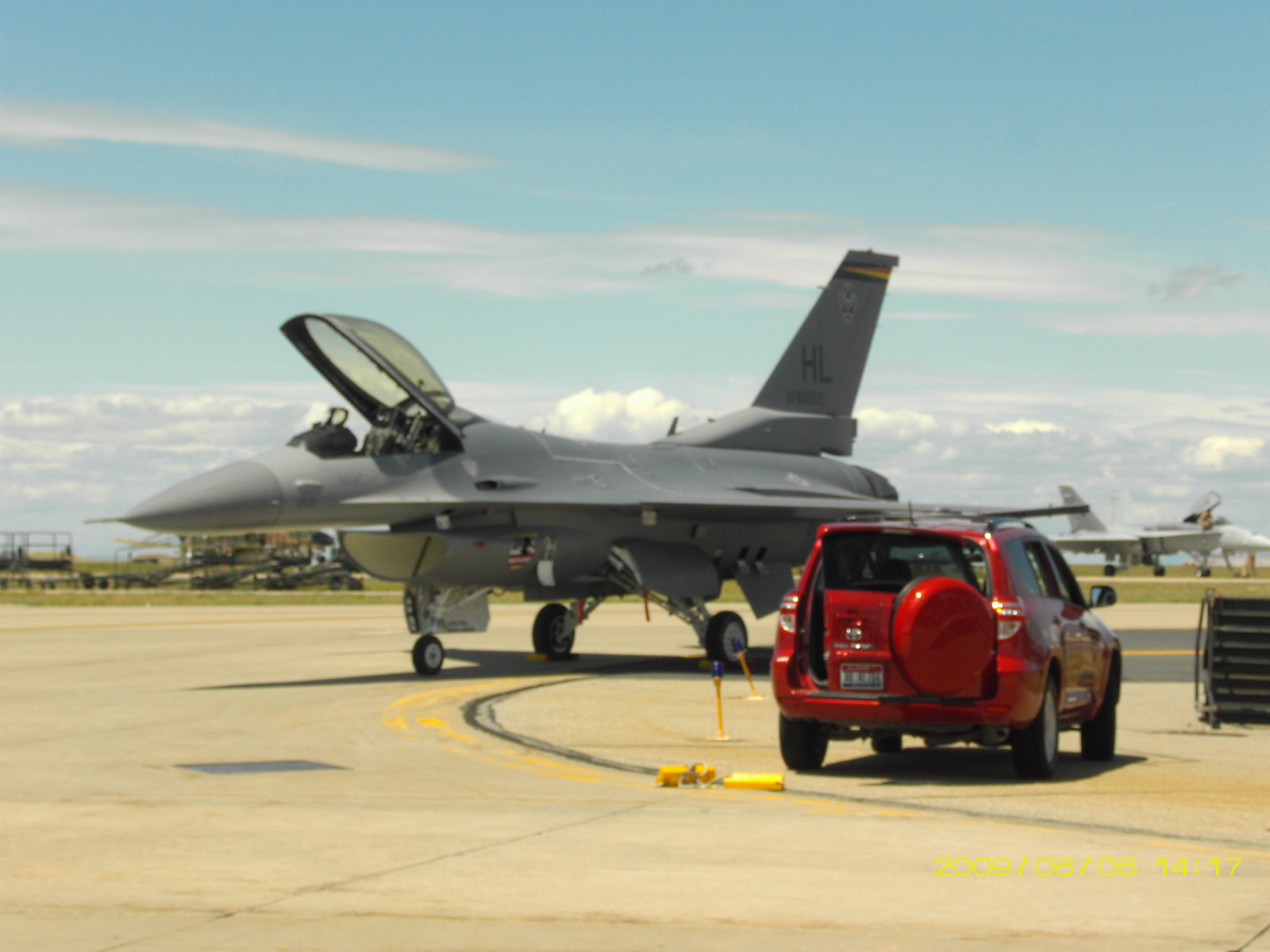

F-16 Falcon

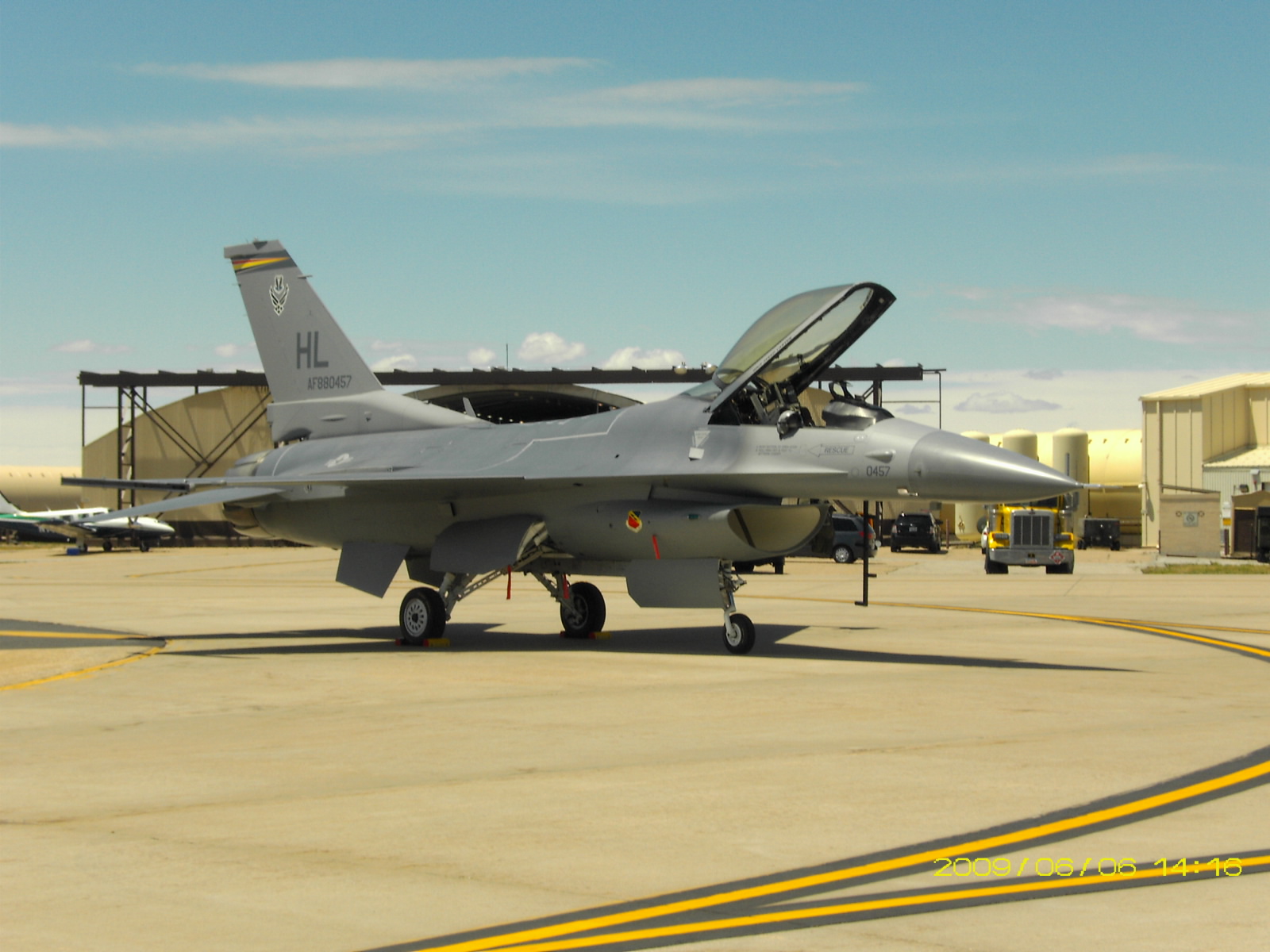

F-16 Falcon
